The world in this shooter begins flat. Every object has a two-dimensional footprint; height and vertical position are stored as scalar metadata. There are no 3D meshes in the renderer and no game engine quietly supplying the missing dimension. The camera creates that dimension itself, one ray and one vertical strip at a time.
I first explored the idea in 2019 by adapting and explaining OneLoneCoder’s compact CommandLineFPS ray caster. A 16 × 16 character map and roughly 180 lines of C++ were enough to make a corridor appear inside a 120 × 40 terminal. A year later, I asked a more ambitious question: how far could I push the same idea if I designed the engine and game systems myself?
The answer became a textured first-person shooter with weapons, collision, recursive mirrors, reflected bullets, an online deathmatch mode, imported .obj maps, and—eventually—bots evolved with a genetic algorithm.
The map stayed two-dimensional
The engine’s World stores polygons made from points and line segments. The camera has a position, a direction, and a field of view. For every column of the 1,280-pixel-wide output, it casts a ray into that 2D world and collects the intersections it needs to project the visible wall heights.
Distance does the rest. A nearby wall becomes a tall strip; a distant wall becomes a short one. Darkening strips with distance suggests lighting, and placing them side by side creates a convincing first-person view. The central problem is not “draw a 3D triangle,” but “find where this 2D ray crosses this 2D segment.”

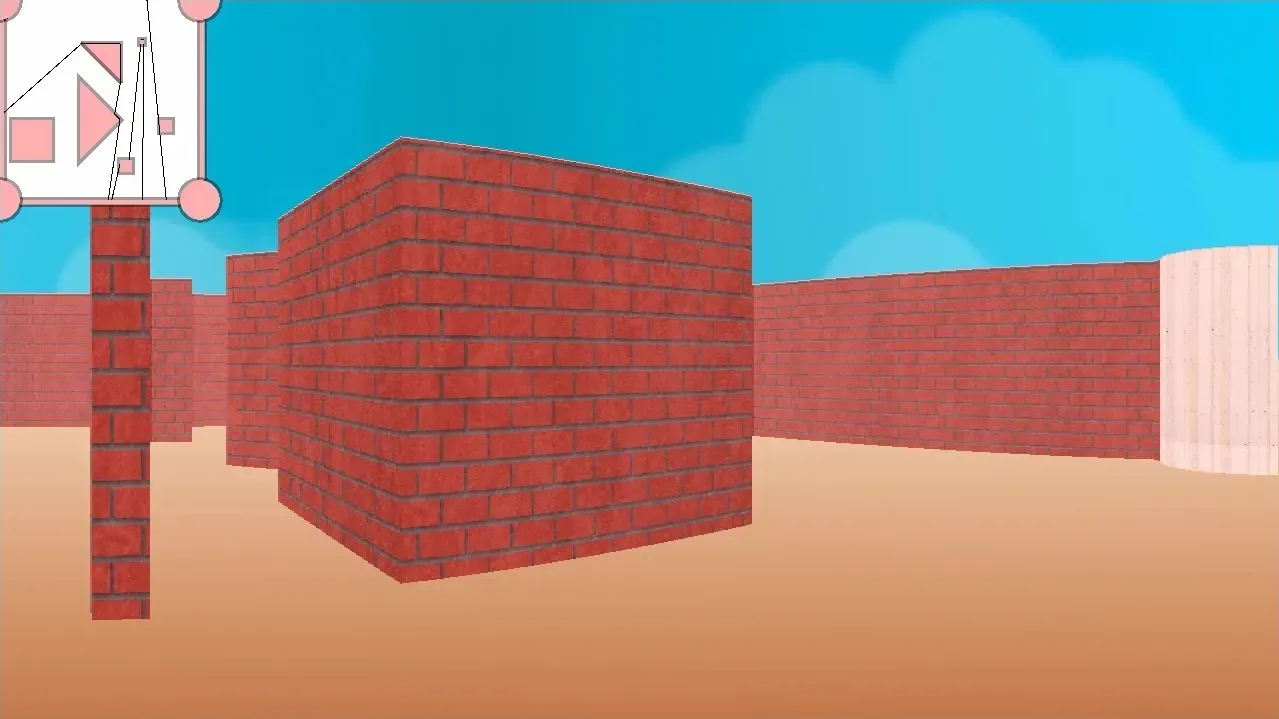

A top-down debug view made that geometry visible. When the camera appeared to hit an invisible wall, I could inspect the fan of rays, the intersection points, and the shape winding instead of guessing from the final image. It became the fastest way to separate a mathematical bug from a drawing bug.
SFML supplied the practical platform layer—window creation, mouse and keyboard input, image and sound loading, primitive drawing, and sockets. The world model, visibility calculations, projection, collision, weapons, and game rules remained explicit in the project’s C++ code: I built the initial systems, and contributors later improved them.
After five intensive days of working six to eight hours a day, the renderer had moved beyond flat color. Each wall carried a texture; the engine cut it into vertical samples and chose the sample corresponding to the ray’s hit point. A seamless sky scrolled with the camera, distance shading added depth, and later floor texturing replaced the original single-color ground.
A renderer became a game
A convincing screenshot was only the beginning. Making the scene playable required systems that had to agree on time, space, and state.
The weapon model tracked ammunition, damage, fire cooldown, and animation timing. I separated the shotgun artwork into layers so the hand and barrel could move independently during the firing and cycling animation, then added weapon bob and a muzzle flash. The player collided with walls by projecting movement along surface normals, which allowed the camera to slide past an obstacle instead of stopping abruptly.
Supporting walls of different heights changed the renderer more fundamentally. A ray could no longer stop at one hit. It had to collect every visible surface along its path, then draw them from farthest to nearest—the painter’s algorithm—so a short foreground wall did not erase a taller wall behind it.
That richer ray result made one experiment possible that still defines the project.
Mirrors turned an implementation detail into a mechanic

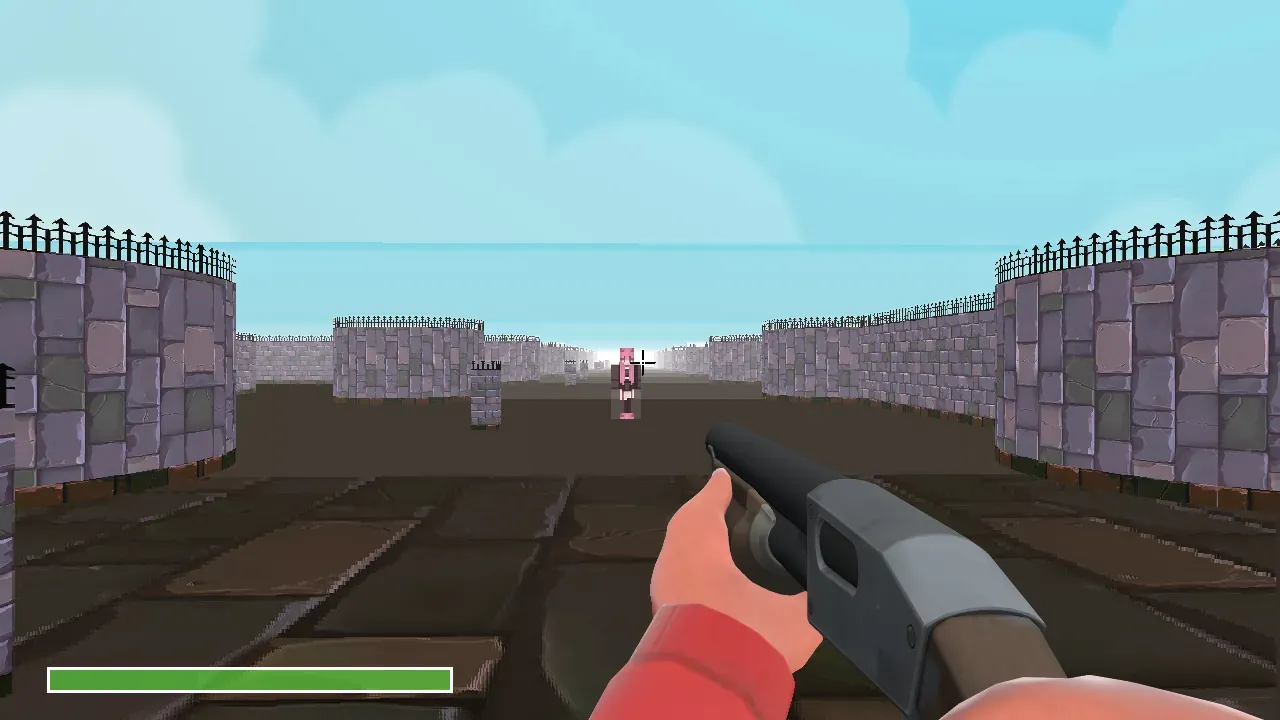

When a ray reaches a mirror, the engine reflects it across the wall’s normal and continues tracing through the scene. A fixed recursion limit prevents two facing mirrors from sending the call stack toward infinity, while the far-to-near drawing order keeps the nested result coherent.
The satisfying part was not only visual. Shooting already used the same ray-casting function as rendering: cast from the player, find what it intersects, then apply damage. Once mirrors worked in the shared ray logic, bullets began reflecting too. A player could hit an opponent by firing into a mirror, with damage falling as the total path grew longer.
Getting several players into the same flat world
For multiplayer, I added a client/server layer over UDP. The first test looked terrible: a circle moving on the server appeared seconds late on the client. The network was not actually taking seconds. I was producing state packets faster than the client consumed them, so it kept displaying stale positions from its receive queue. Draining the queue and applying the newest available state made the movement responsive.

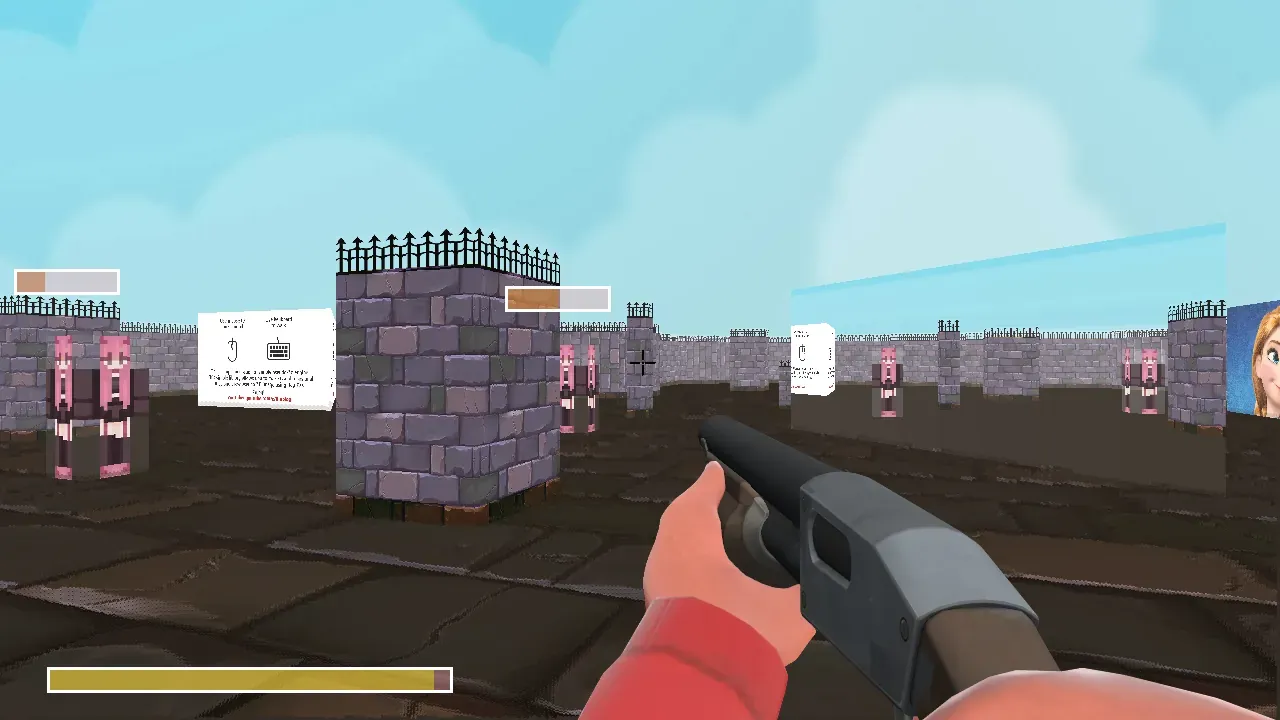

From there, the prototype grew into a small deathmatch. Players could join the same arena, see one another, shoot, lose health, and respawn at the starting point. The later networking rewrite also tracked kills and deaths. Health affected movement speed, making a wounded player retreat until regeneration made another attack viable.
The first real playtest lasted about an hour—long enough that my friends and I stopped noticing the time. More importantly, it became a live design loop. During the session, my friends suggested regenerating health; I added it and we kept playing, immediately feeling how it changed the pace of taking cover and re-entering a fight.
The engine kept growing after the sprint

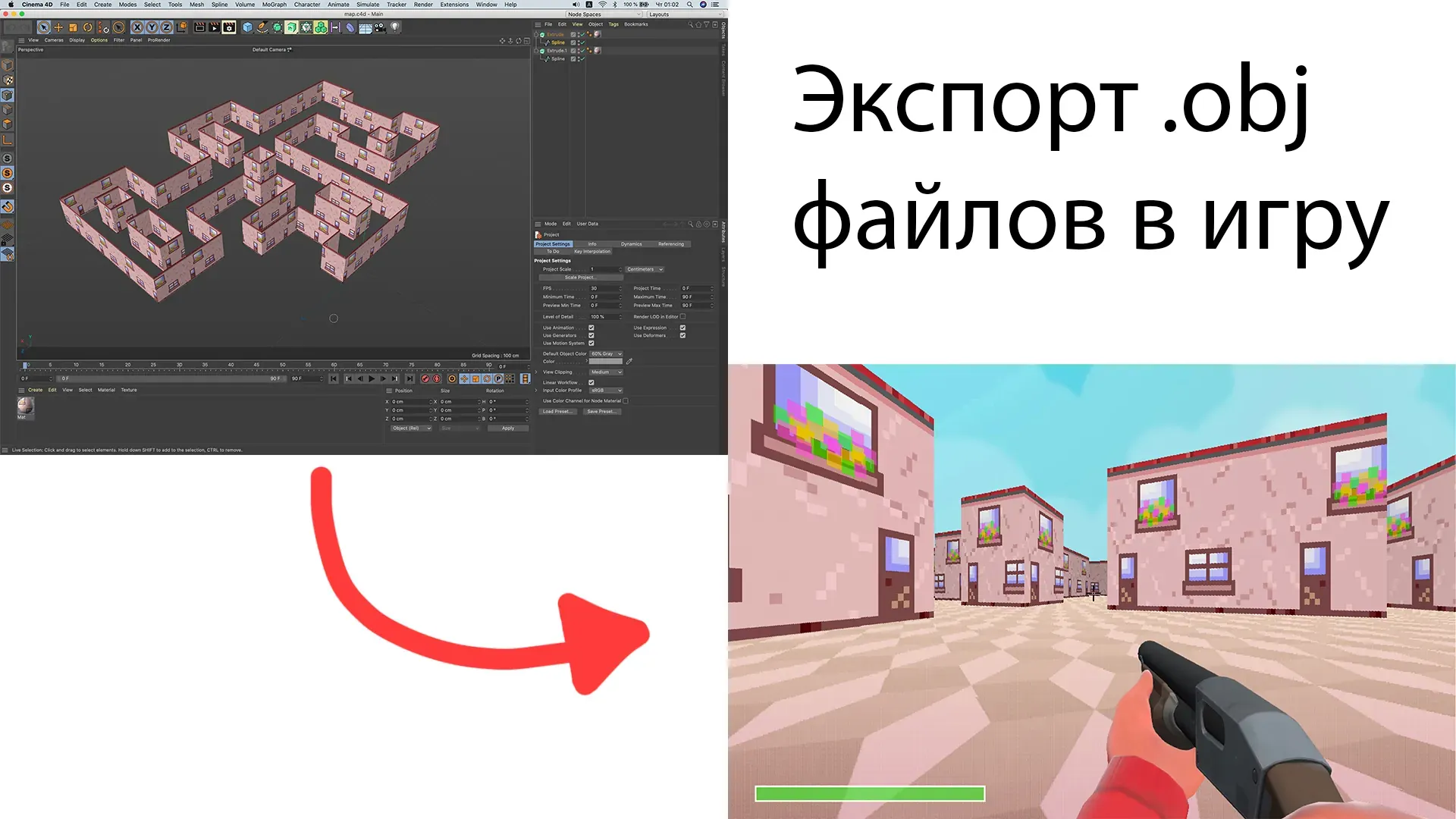

The original arena was assembled directly from points and segments. Later, I built an import path for maps authored in a conventional 3D editor: export an .obj file, read its vertical faces, and turn them into the 2D wall segments and height data the ray caster understands. The workflow kept the renderer unusual without forcing level design to happen inside C++ source files.
The public code also gained floor texturing, vertical movement and jumping, health and ammunition pickups, multithreaded ray calculations, and a larger city map. A contributor, Neirokan, later rewrote the networking layer and added fisheye correction, improved circular collision and wall heights, reflection containment, focus-aware input, frame limiting, resource fixes, and optimizations. Stepan Neretin (dura0ok) later added Linux build support.
The most experimental extension was a population of neural-network bots trained through selection, crossover, and mutation. Each bot received eight radial distance readings, the distance and angle to a visible opponent, and its ammunition state. Four outputs controlled strafing, forward movement, turning, and firing. The checkpoint committed to the repository reached generation 2,489; the video experiment continued for thousands more generations before its score plateaued.
What came out of the project
- A playable networked FPS. The first custom renderer, collision, weapons, mirrors, damage, and multiplayer all landed within a roughly 15-day development window.
- A reusable body of engine code. The public repository grew to roughly 6,000 lines across 53 C++ source and header files, with more than 80 commits documenting its evolution.
- An audience for the explanation. The two original Russian articles record more than 125,000 historical page views together. The three development videos—console ray casting, the online shooter, and genetic-algorithm bots—have passed 2.8 million views combined.
- A small open development community. The repository has attracted more than 180 GitHub stars and 30 forks, plus contributions that improved networking, collision, rendering, portability, and day-to-day usability.
- A platform for further experiments. The same deliberately simple world supported recursive optics, unusual combat, multiplayer synchronization, map importing, CPU parallelism, and evolutionary AI.
What the flat world taught me
- A small representation can support surprisingly rich behavior. Keeping the world in 2D made visibility easy to inspect while leaving room for textures, height, reflections, collisions, and game rules.
- Shared abstractions create unexpected features. Reflected gunfire was not planned as a separate system; it emerged because rendering and shooting trusted the same ray logic.
- A playable game is a better test than a renderer demo. Multiplayer exposed timing, state, collision, and usability problems that a beautiful still frame could hide.
- Debug views are part of the design. Showing the camera and its rays shortened the path from “this looks wrong” to the exact intersection or normal that caused it.
- Publishing the process invites continuation. Articles and videos brought an audience; public code brought fixes, a Linux build, forks, and ideas I would not have reached alone.
The project never tried to out-render a modern 3D engine. Its value was almost the opposite: every illusion remained small enough to understand. I could trace a line from a segment on a flat map to a column of pixels, from that column to a mirror, and from the mirror to a shot that surprised another player across the network.
My project logs and source code
I originally documented this project in Russian through two articles and three build videos. This page brings that work together in English and adds details from the later repository history.
